ORIENT RA-AA0E01S Specifications
|Driving system||Automatic features manual hand winding movement|
|Case material||Stainless steel|

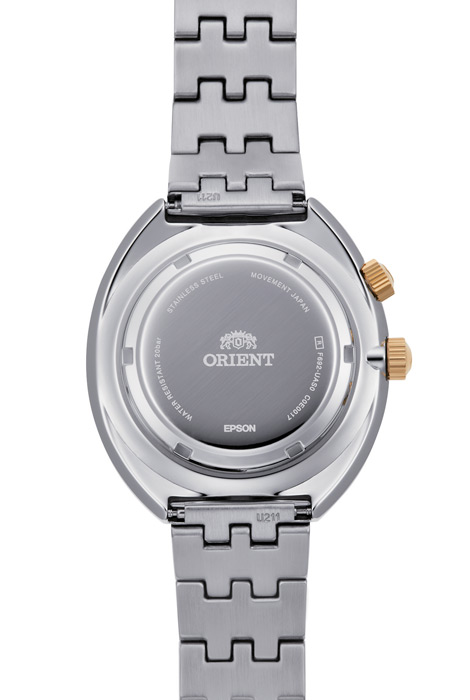

|Case back||Solid screw|
|Case color||Silver tone|
|Band material||Stainless steel|
|Band color||Silver tone|
|Band width||20 mm|
|Clasp||Fold over with push button safety|
|Dial color||Ivory with world map|
|Glass material||Mineral crystal|
|Hands||Gold tone hour, minute and second hand|
|Dial markers||Gold tone dots indexes|
|Second markers||Minutes markers around the outer rim|

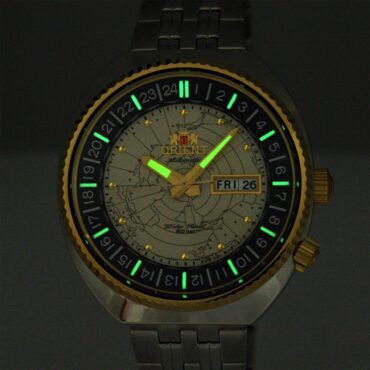

|Luminous||Hands and hour markers|
|Bezel||Fixed outer gold tone stainless steel and bi-directional rotating inner 24-hour time display|

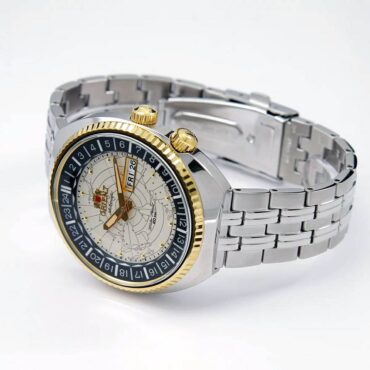

|Crown||Gold tone push/pull at 3 and 4 o’clock position for rotating inner ring bezel|
|Function||Day, date, hour, minute, 24-hour time display, second hand halt mechanism|
|Drive duration||Power reserve approximately 40 hours|
|Vibration||21,600 vibrations / hour|
|Water resistance||20 bar water resistance (200 meters / 660 feet)|
|Size||Diameter 43.5 mm x Thickness 13.9 mm|
|Lug to lug||46 mm|
ORIENT RA-AA0E01S Features

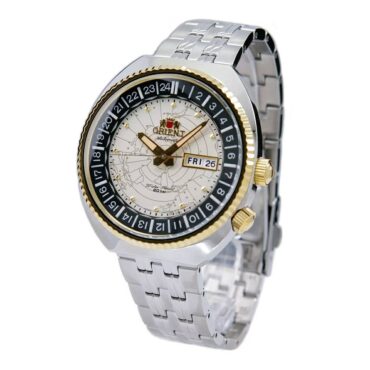

The new Revival model, World Map will include the faithful reproduction of the original world map dial from 1969, with unique retro designs and modern specifications and features. While the ivory dial provides a nostalgic charm, and it has been specially processed to appear spherical due to the lens effect. It depicts a mystical radiant earth that plays tribute to the depth and beauty of nature. Just like the original 1969 model, the new model displays time, date, and day of the week. It also has an inner bezel that can be rotated using the crown at the four o’clock position on the case, allowing a simplified 24-hour time display. The case has been updated to achieve water resistance to 20 bar, and the bracelet is composed of solid metal links for suppleness and comfortable fit. The automatic in-house caliber F6922 provides stable high accuracy, making these models perfect for any occasion.
- 22 jewels
- Case size (3H-9H): 43.5mm
- Case size (12H-6H): 46mm
- Stainless steel case
- Water resistance 200m
- 24-hour time display
- Day and date display
- Solid screw case back
Click here to download Service manual for Orient RA-AA0E01S.
About ORIENT RA-AA0E01S
Orient Watch is a Japanese watch brand owned by Seiko Epson. Established as an independent company in 1950, it became a functional subsidiary of Epson in 2009 before being fully integrated into the company in 2017.
Until it was absorbed into Epson, the Orient Watch Company had primarily marketed mechanical watches (self-winding & hand-winding), but also produced quartz, light-powered (solar) and radio-controlled models. Outside of the main business, the company produced some moving parts and electronic components that were then assembled into Seiko Epson’s electronic devices.
Currently, Akita Epson Corporation (formally Akita Orient Precision Instruments Co., Ltd.), a group company of Epson, manufactures all of the Orient movements in-house in Yuzawa, Akita, Japan.
