Description
ORIENT RA-AK0402E Specifications
| Features |
|
||
|---|---|---|---|
| Driving system | Automatic hand winding hacking movement | ||
| Caliber number | F6B22 | ||
| Case material | Stainless steel | ||
| Case back | Solid screw | ||
| Case color | Silver tone | ||
| Band type | Bracelet | ||
| Band material | Stainless steel | ||
| Band color | Silver tone | ||
| Band width | 22 mm | ||
| Clasp | Fold over with push button safety | ||
| Dial color | Dark green | ||
| Glass material | Mineral crystal | ||
| Hands | Black, green and silver tone (hour, minute) with silver and red tipped arrow model second hand | ||
| Dial markers | Silver tone batons with double trapezoid at 12 o’clock | ||
| Second markers | Minutes markers around the outer rim | ||
| Luminous | Hands and hour markers | ||
| Bezel | Fixed silver tone stainless steel with arabic numeral markers per 5 minutes scale | ||

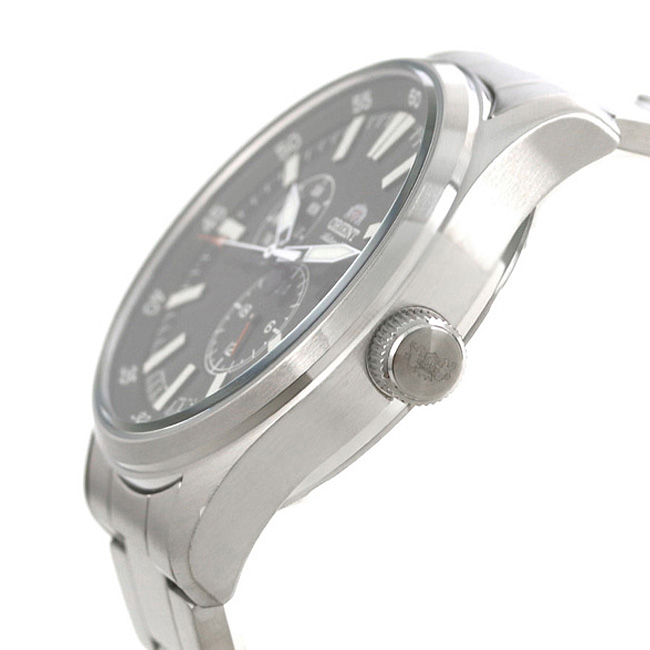

| Crown | Screwed-down at 3 o’clock position | ||
| Calendar | Weekday sub-dial at 10 o’clock position and date display at 3 o’clock position | ||
| Function | Day, date, 24 hour sub-dial, minute, second hand halt mechanism | ||
| Drive duration | Power reserve approximately 40 hours | ||
| Vibration | 21,600 vibrations / hour | ||
| Water resistance | 10 bar water resistance (100 meters / 330 feet) | ||
| Size | Diameter 42.4 mm x Thickness 12.2 mm | ||
| Lug to lug | 49.4 mm |
ORIENT RA-AK0402E Features
This adventurous ORIENT 42.4mm mechanical sports watch showcases a stainless steel case and band, dial, and screw-down crown to maximize water resistance. Distinguished features include a 24-hour sub-dial, weekday sub-dial, white hands and hour markers, and a convenient date aperture. The watch’s chapter ring is finished in a hash mark design for specific and easy time tracking. It supports water resistance of 100 meters.
- 22 jewels
- Case size (3H-9H): 42.4mm
- Case size (12H-6H): 49.4mm
- Stainless steel case
- Water resistance 100m
- Date display
- Weekday sub-dial
- 24 hour sub-dial
- Solid screw case back
Click here to download Service manual for Orient RA-AK0402E.
About ORIENT RA-AK0402E
Orient Watch is a Japanese watch brand owned by Seiko Epson. Established as an independent company in 1950, it became a functional subsidiary of Epson in 2009 before being fully integrated into the company in 2017.
Until it was absorbed into Epson, the Orient Watch Company had primarily marketed mechanical watches (self-winding & hand-winding), but also produced quartz, light-powered (solar) and radio-controlled models. Outside of the main business, the company produced some moving parts and electronic components that were then assembled into Seiko Epson’s electronic devices.
Currently, Akita Epson Corporation (formally Akita Orient Precision Instruments Co., Ltd.), a group company of Epson, manufactures all of the Orient movements in-house in Yuzawa, Akita, Japan.
