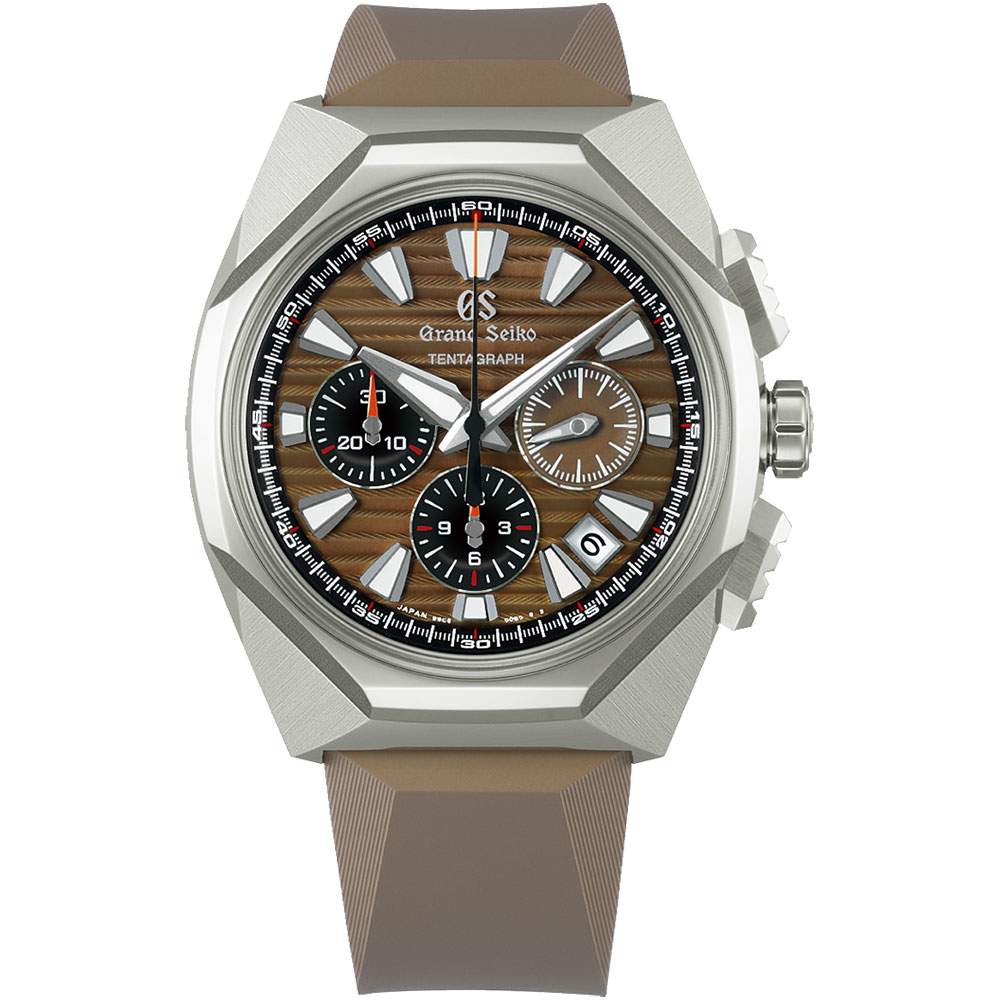

GRAND SEIKO SLGC009

Contact us

Grand Seiko SLGC009 Specifications

Exterior
Case Material Brilliant Hard Titanium
Case Back See-through with 4 screws
Glass Material Box shaped sapphire crystal
Glass Coating Anti-reflective coating on inner surface
Band Material Brown rubber strap
Bezel Material Fixed brushed and polished Brilliant Hard Titanium
Dial Color Lion-themed textured in dark beige color through in the form of black sub-dials with engraved Grand Seiko and Tentagraph logo below the 12 o’clock position
Dial Hands Silver tone hour, minute and black second hand with Zaratsu polished
Black chronograph counters at 6 and 9 o’clock with with red accents hands, running seconds sub dial at 3 o’clock
Dial Markers Silver tone batons and double batons at 12 o’clock with Zaratsu polished
Lumibrite Hands and indexes markers
Crown Screw down at 3 o’clock position
Case size Diameter 43 mm × Thickness 15.6 mm
Lug to lug 50 mm
Band width 23 mm

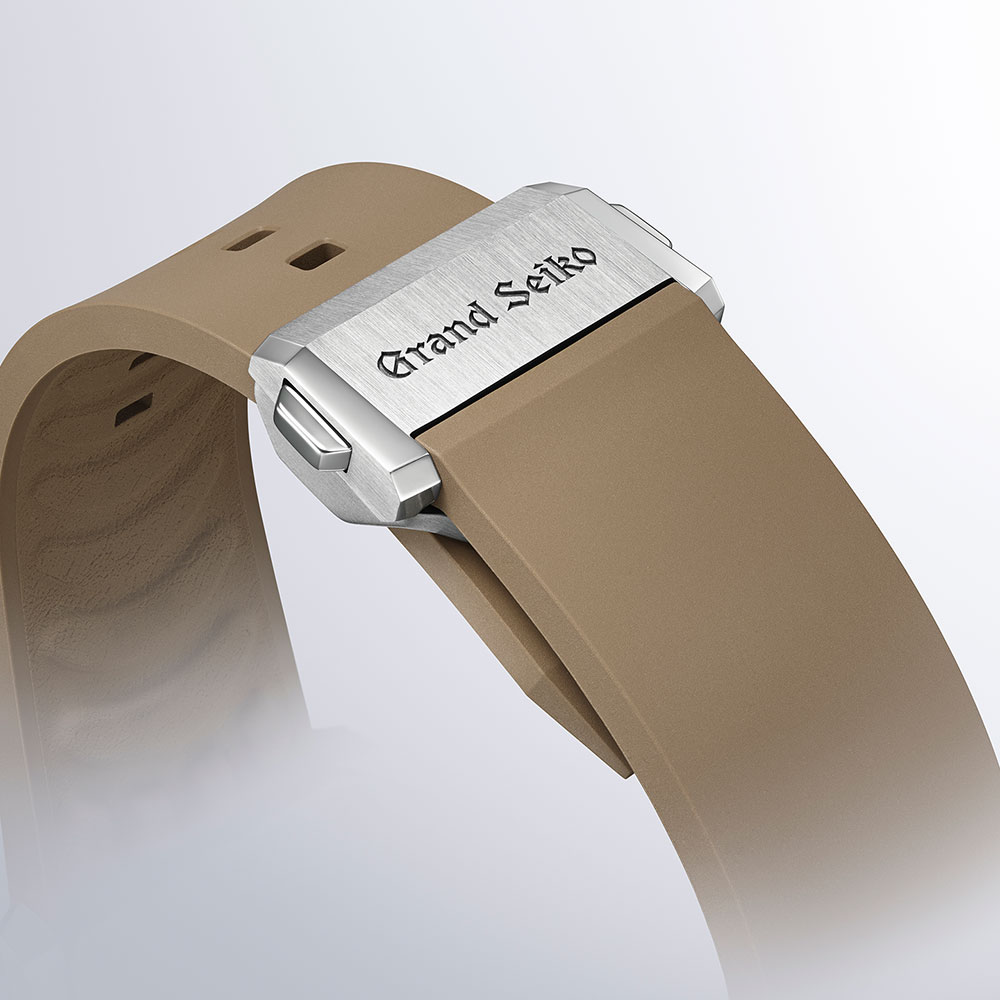

Clasp type Three-fold clasp with push button release
The perimeter of Band 200 mm



Movement
Caliber no 9SC5    Instructions
Movement Type Automatic with manual winding
Power reserve Approximately 72 hours (3 days)
Mean daily rate +5 to -3 seconds per day

*Mean daily rate is a mean value of daily rates in a condition where the movement before assembly in a case is measured in six positions in a fixed manner under artificially controlled environment for 12 days.

Normal usage accuracy +8 to -1 seconds per day
Vibrations 36,000 vibrations per hour (10 beats per second)



Functions / Specifications
Water resistance 20 bar / 200 m
Magnetic resistance Equipped (4,800 A/m)
Weight 139 g
Functions Hour, minute, second hand, small seconds at 3 o’clock, chronograph with central seconds, 30-minute counter at 9 o’clock and 12-hour counter at 6 o’clock, date between 4 and 5 o’clock
Features
  • 60 jewels
  • Case back with lion emblem
  • Allergy-safe metal
  • See-through screw case back
  • Screw-down crown
  • Chronograph with 30-minutes and 12-hours

Reference : Grand Seiko SLGC009G

Description

About Grand Seiko SLGC009

Grand Seiko The Tentagraph Sport Collection

The Grand Seiko Tentagraph movement is introduced in the Tokyo Lion design

The lion symbol reflected the aim of the original Grand Seiko team to create the very best timepiece they could in terms of accuracy, durability, and beauty. Inheriting the lion symbol, this watch was developed in the relentless pursuit to advance the essence of the Grand Seiko sports watch. From its case design rich with symbolism to its refined rubber strap and textured dial, numerous aspects have evolved from previous lion-themed timepieces in pursuit of key sports watch values such as legibility, durability, comfort, and beauty.

The new creation features a dial pattern that takes inspiration from the mane of the lion as it waves in the wind. At the 3, 6, and 9 o’clock positions, there are distinctive, three-dimensional sub-dials, which are inlaid onto the dial. This watch also marks the first time that Grand Seiko’s Brilliant Hard Titanium has been adopted in the Sport Collection. The alloy is brighter than traditional titanium, causing the case’s brushed finish surfaces and Zaratsu-polished surfaces to appear even more radiant, enhancing the strong design.

Grand Seiko SLGC009 Features

Supreme legibility of the dial

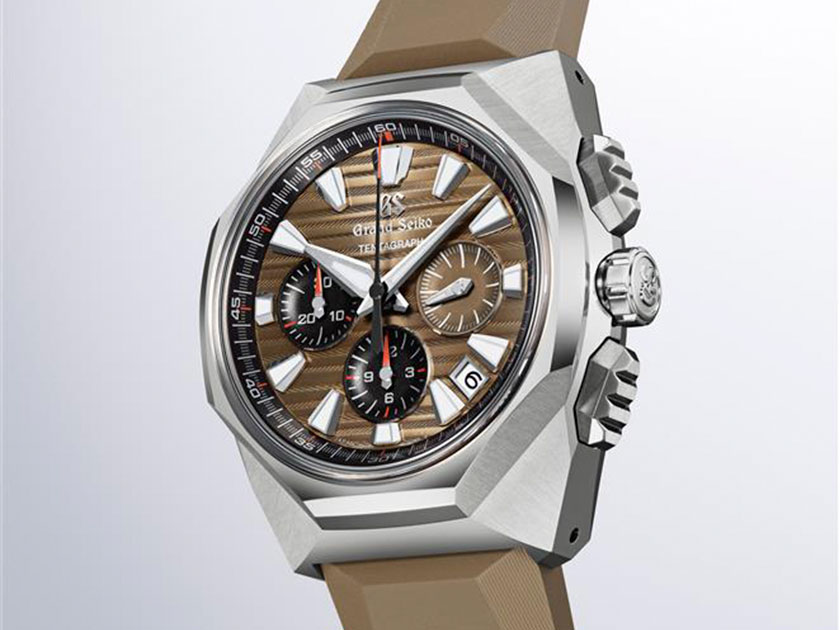

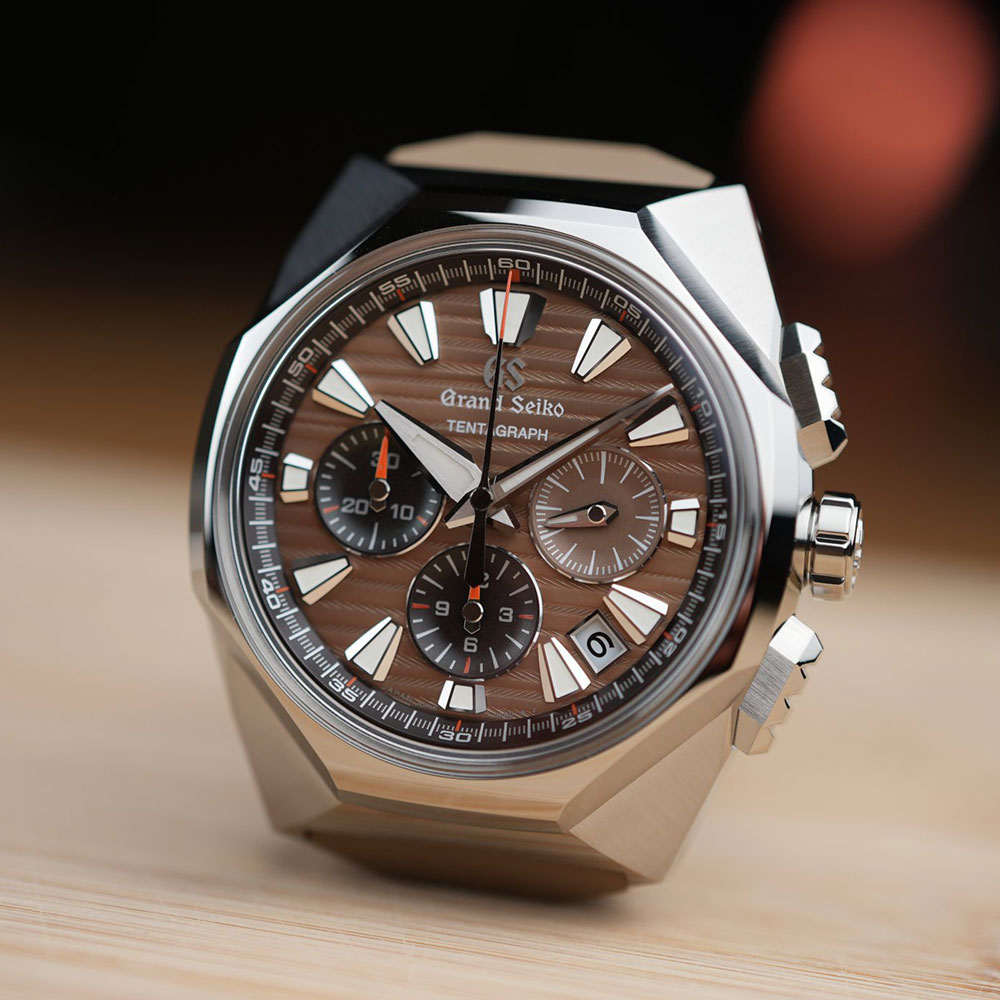

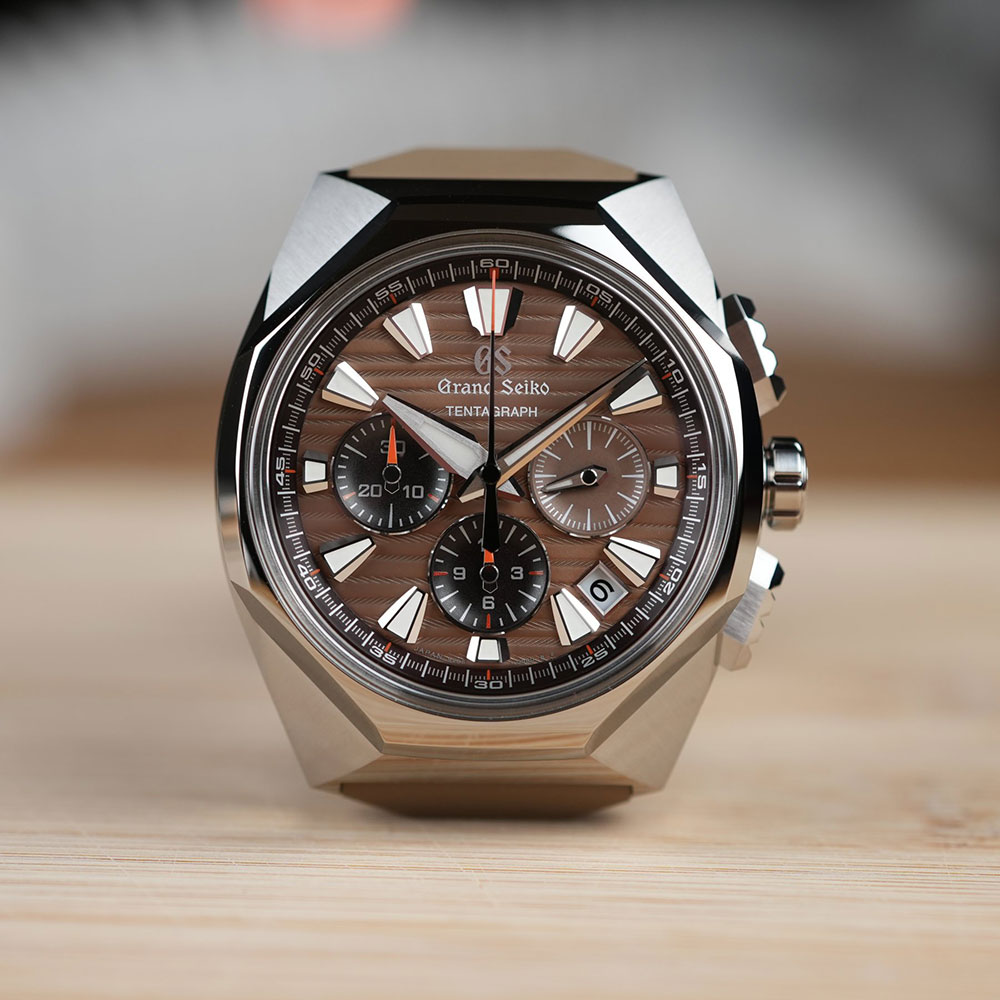

Grand Seiko SLGC009 Dial

Thanks to these three-dimensional sub-dials, the distance between the sub-dial markings and hands has been reduced, leading to enhanced legibility. Resembling the sharp claws of a lion, the diamond-cut indexes of the main dial reflect light beautifully. Moreover, these indexes have been made taller and shaped to hold sufficient Lumibrite for improved readability in any light condition.



Newly developed rubber strap with an enhanced strength

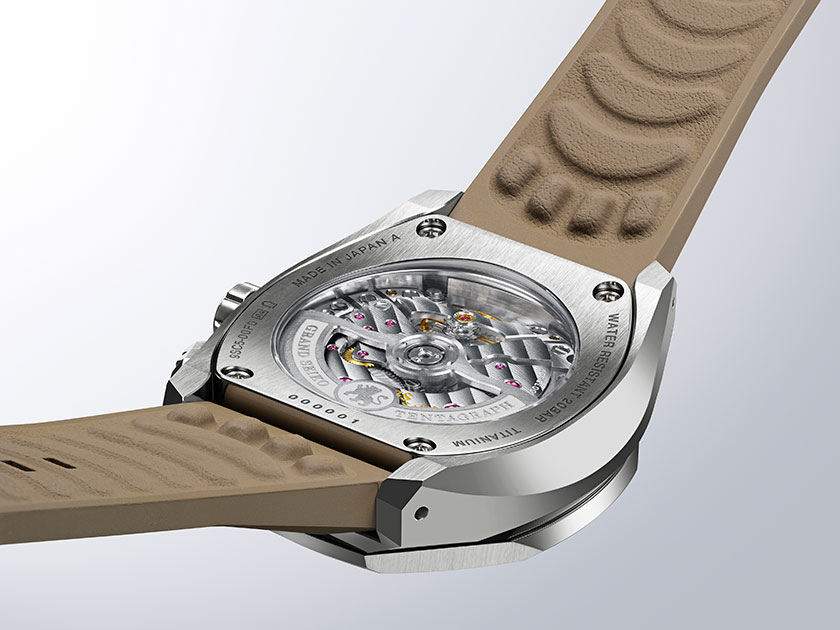

Grand Seiko SLGC009 Strap

The newly developed rubber strap has a tensile strength of nearly 2.7 times the typical silicone strap used for Grand Seiko. It was created for this watch, and its brown color pairs perfectly with the patterned dial. Not only does the strap have an excellent texture, but the motif on the back was inspired by the lion’s paw, providing a playful design detail even if it is only visible to the wearer. Combined with the slightly curved case back, the new strap ensures comfort and stability on the wrist befitting a Grand Seiko sports watch.



The updated case and pushers

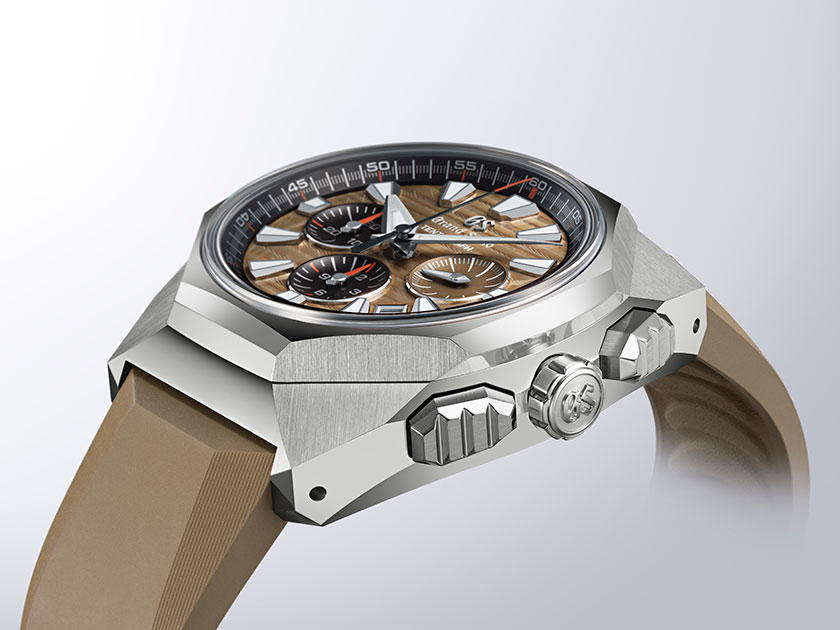

Grand Seiko SLGC009 Case

The claw-like, brushed finish surfaces are more emphasized than in previous lion-inspired watches. They span a wider area that includes not only the lugs but also the bezel. On the side, the pushers have been updated to improve the chronograph function’s ease of use. The powerful design of these buttons was created to achieve a satisfying feeling when engaging the chronograph.



The Tentagraph Caliber 9SC5

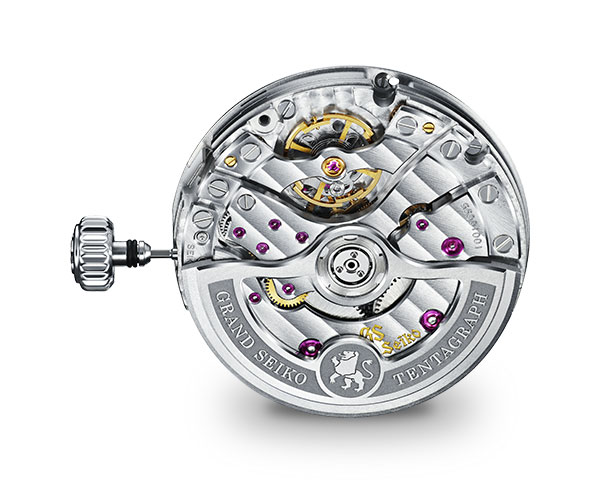

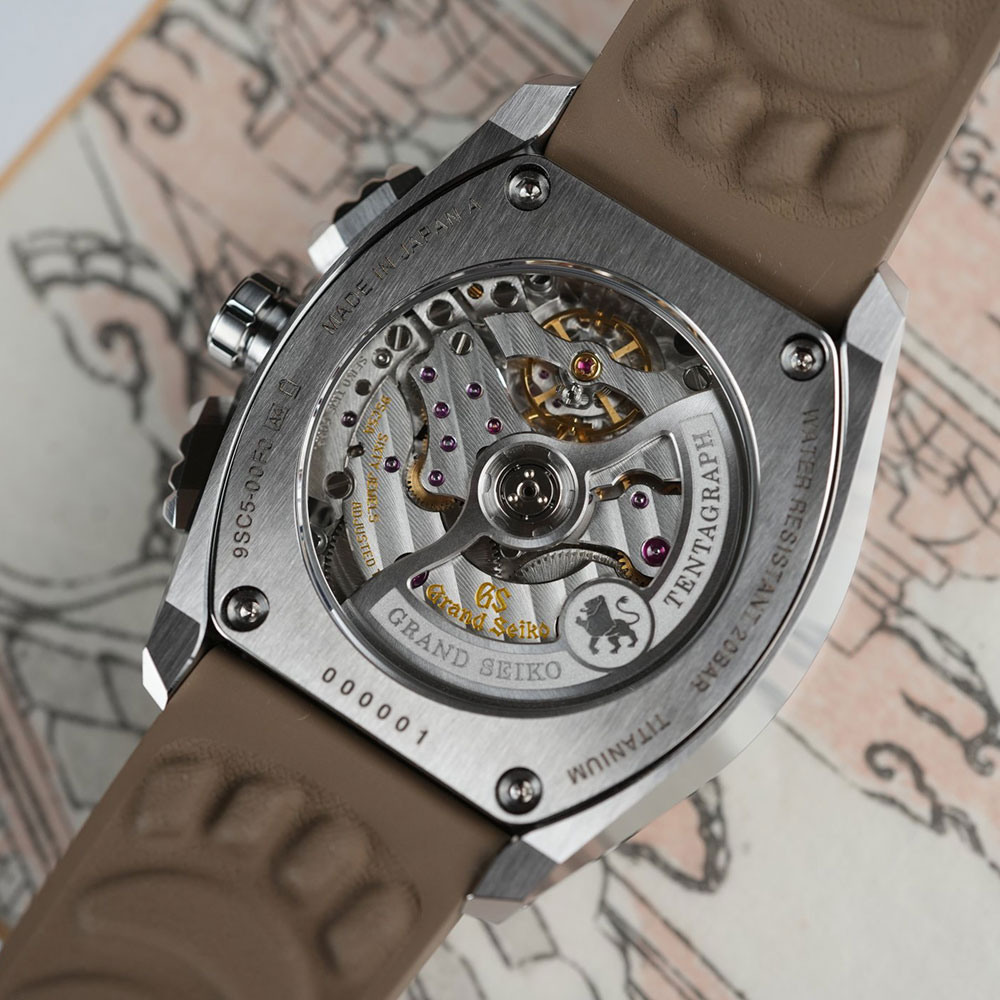

Grand Seiko SLGC009 Caliber 9SC5

The name Tentagraph describes key features of the Caliber 9SC5 movement: Ten beats per second, three days of power reserve, automatic winding, and chronograph.
Fully wound, the watch runs for 72 hours when the chronograph is in operation.

Details of Caliber 9SC5



Grand Seiko SLGC009 Tentagraph

  • 60 jewels
  • Case back with lion emblem
  • Allergy-safe metal
  • See-through screw case back
  • Screw-down crown
  • Chronograph with 30 minutes and 12 hour

Grand Seiko SLGC009 History

Prior to 1960, to challenge the status of Swiss watches and change the perception of Japanese watches, Daini Seikosha and Suwa began the discussion of a product line that can match the quality of Swiss watches under the suggestion of the parent company. At the time, Suwa Seikosha Co. was in charge of manufacturing men’s watches, so it was decided that Suwa would be producing the first Grand Seiko (GS).

The first Grand Seiko was released in 1960, it was based on Seiko’s previous high-end watch, CROWN. This Grand Seiko has a 25-jewel, manual-winding, 3180 caliber, and only 36,000 units were produced. This was also the first chronometer-grade watch manufactured in Japan, and it was based on Seiko’s own chronometer standard.

Design style

The design language of the Grand Seiko was set in 1967, with the creation of Grand Seiko 44GS. The 44GS set the ground for all future Grand Seiko with nine elements. These elements help improve the legibility of the watch under different situations, and create a sharp, crisp visual impression:

  1. Double width index at 12 o’clock
  2. Multi-faceted rectangular markers
  3. Highly polished bezel
  4. Highly polished planes and two-dimensional surface
  5. Half recessed crown
  6. Flat dial
  7. Multi-faceted hour and minute hands
  8. Curved side line
  9. Reverse slanted bezel wall and case side
  10. Dress style with simple but beautiful design
  11. Zaratsu polishing

source : wikipedia

Grand Seiko SLGC009 Features

Additional information

Weight 2 kg
Dimensions 5 × 5 × 2 cm
